Sliding Door Frames
Door Building Quick Frames
We Offer 1-1/2" & 3-1/2" Sliding Door Quick Frames to make doors 1.5" thick or 3.5" thick.
We supply door frames. Door siding is supplied locally.
We supply door frames. Door siding is supplied locally.
1-1/2" Sliding Door Quick Frames

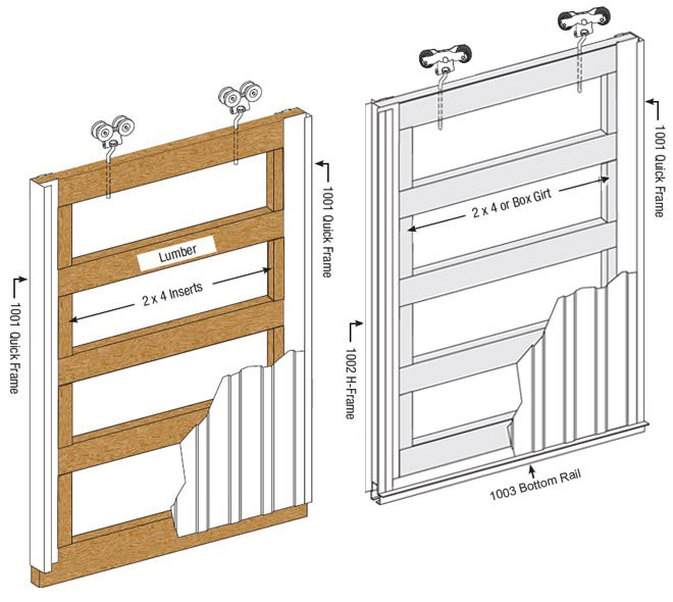

White Aluminum Sliding Door Quick Frames can be assembled with locally provided standard 2 x 4 or 2 x 6 lumber as horizontals. Or, for an all metal door, our galvanized 2004 Steel Box Girts can be used as horizontals. We recommend spacing these horizontals approximately 24" to 28" on center.
Optional wood or steel inserts can be placed inside the vertical channel between each horizontal. Inserts should be permanently attached with screws, becoming part of the frame. This is suggested to help prevent damage to the doors in windy conditions. Use self tapping tek screws.
White Aluminum Sliding Door Quick Frames can be assembled with locally provided standard 2 x 4 or 2 x 6 lumber as horizontals. Or, for an all metal door, our galvanized 2004 Steel Box Girts can be used as horizontals. We recommend spacing these horizontals approximately 24" to 28" on center.
Optional wood or steel inserts can be placed inside the vertical channel between each horizontal. Inserts should be permanently attached with screws, becoming part of the frame. This is suggested to help prevent damage to the doors in windy conditions. Use self tapping tek screws.

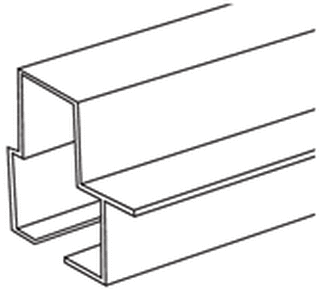

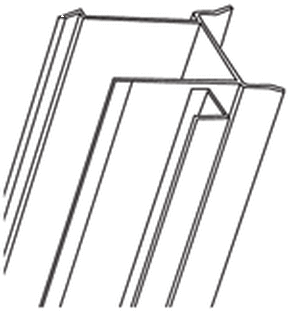

1001 White Aluminum Quick Frame
|
1001 White Aluminum Quick Frame
Is lumber fit for standard 2 x 4 or 2 x 6 and provides smooth, safe sides for door openings. 1001 White Aluminum Quick Frames are sold in even foot lengths so they may need cut down to the height you want to build the door. Packaged in pieces, bundled per order, available in 8', 10', 12', 14', and 16' lengths. |
|

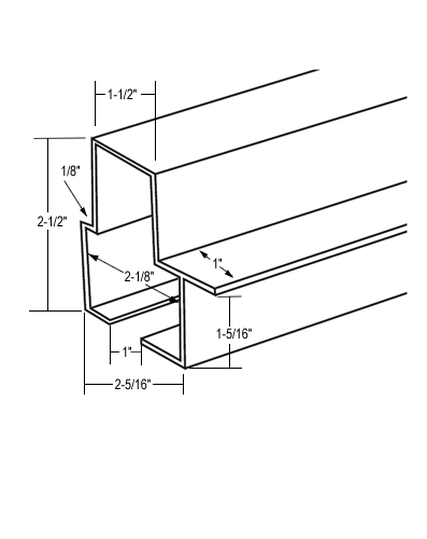

1002 White Aluminum H-Frame
Designed for use with bi-parting doors, provides concealed mating between units covering both door edges. The built-in astragal make bi-part doors come together nicely where two doors meet in the center of the opening. 1002 White Aluminum H-Frames are sold in even foot lengths so they may need cut down to the height you want to b the door. Packaged in pieces, bundled per order, available in 8', 10', 12', 14', and 16' lengths. |
|

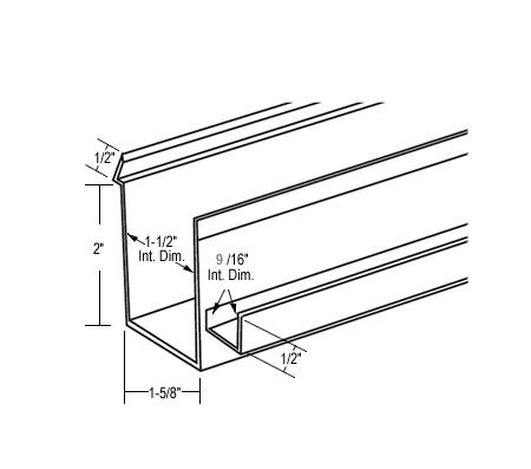

1003 White Aluminum Bottom Rail
Attaches to bottom of door and accepts the #64 Rail Guide or 800 Stay Roller to firmly anchor and guide door along building during operation. 1003 Bottom Rails are sold in even foot lengths so they may need cut down to the width you want to make the door. Order for doors 1-1/2" thick. Available in 8', 10', 12', 14', 16', 18', and 20' lengths. |
|

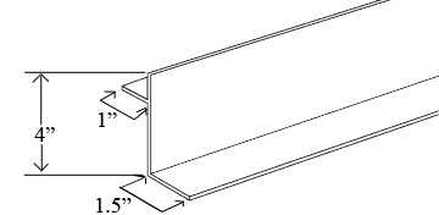

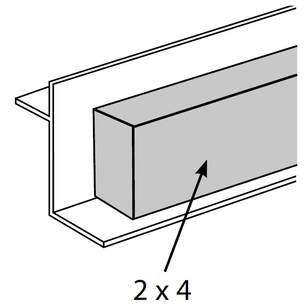

1005 White Aluminum Bottom Rail
Mounts on face of wood bottom rail and provides a smooth surface for a stay roller. Available in 8', 10', 12', 14', 16', 18', and 20' lengths. |

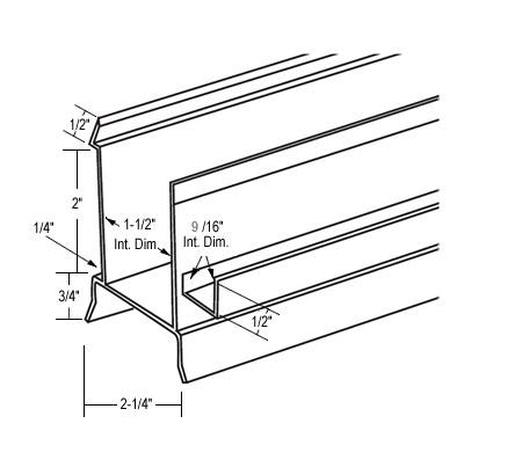

Quick Frame Bottom Guide Systems and Accessories
Our Quick Frame Door Bottom Guide Rails Work With #1003 & #3003 Aluminum Bottom Rails.
Attaches to bottom of door and accepts the #64 Guide Rail to firmly anchor and guide door along building during operation.
Order for doors 1-1/2' thick or 3-1/2" or 3-1/2" thick. White powder coated.
Available in the following lengths: 8' 10' 12' 14' 16' 18' 20'
Attaches to bottom of door and accepts the #64 Guide Rail to firmly anchor and guide door along building during operation.
Order for doors 1-1/2' thick or 3-1/2" or 3-1/2" thick. White powder coated.
Available in the following lengths: 8' 10' 12' 14' 16' 18' 20'
|
#64 Guide Rail
Fabricated from 16 gauge galvanized steel and mounts with #60 brackets. Engages the bottom door guides to hold the door in place and prevent wind damage. Available in the following lengths: 4' 6' 8' 10' (Use more than one section of #64 Guide Rail for doors wider than 10'.) |
|
#60 Guide Rail Bracket
For use with #64 Guide Rail. Slotted hole in each leg allows both lateral and vertical adjustments. Bolts and nuts included. |
|
#68 Single Door Stop
For use with #64 Bottom Door Guide. Stops door and prevents from disengaging with guide rail. |
Bottom Guide Rails for Bi-Pass Doors on Double Track Runs
For Use with the #64 Guide Rail
For Use with the #64 Guide Rail
|
#60 DGRB Double Guide Rail Bracket For use with #64 Guide Rail. Slotted hole in each leg allows both later and vertical adjustments. Bolts and nuts included. For use with double track runs for by-pass doors. |
|
#68 DDS Double Door Stop
For use with #64 Guide Rail. Slotted hole in each leg allows both lateral and vertical adjustments. Bolts and nuts included. Stops door and prevents from disengaging with guide rail. For use with double track runs for by-pass doors. |
You Can Also Use Our Stay Rollers With #1003 & #3003 Aluminum Bottom Rails Instead Of The Guide Rails!
The stay roller wheels fit inside the bottom door frames.
Stay rollers act as bottom door guides to help secure sliding doors and prevent doors from swinging out due to the wind.
They attach to the wall in the side room.
585 Stay Roller
780 Stay Roller
800 Stay Roller
|
585 Stay Roller
Wall mounted. Adjustable for doors 1-1/4" to 2-5/8" thick. Reversible, 2" non-marking plastic wheel. Frame is 3/16" zinc plated steel, 1-1/4" wide x 4-1/4" long. 780 Stay Roller
Wall mounted with 2" diameter non-marking plastic wheel. Adjustable and reversible for doors 1-1/2" to 2-1/2" thick. Frame is 1/8" thick, 3-1/2" wide, 4" long and zinc plated. 800 Stay Roller
This heavy duty stay roller is fabricated from 3/16" zinc plated steel, and adjusts from 1" to 3-3/4" for a wide range of door widths. Non-marking plastic wheel mounted on sturdy 1/2" bolt. Offset slots allow full contact with door. |
Box Girt/Horizontal Laterals
2004 Galvanized Steel Girt
|
2004 Galvanized Steel Girt Made from 20 gauge galvanized steel (1-1/2" x 3-1/2" lock seamtube). Can be used in place of wood horizontal girts to eliminate warping, bowing, and cracking of door panels. Weight is 1.3 lbs./ft. Available in custom lengths, 6' - 20', in 1" increments. Works with 1-1/2" & 3-1/2" quick frames. |
3 1/2" Thick Sliding Door Quick Frames
Quick Frames for "Big Doors"
Quick Frames for "Big Doors"

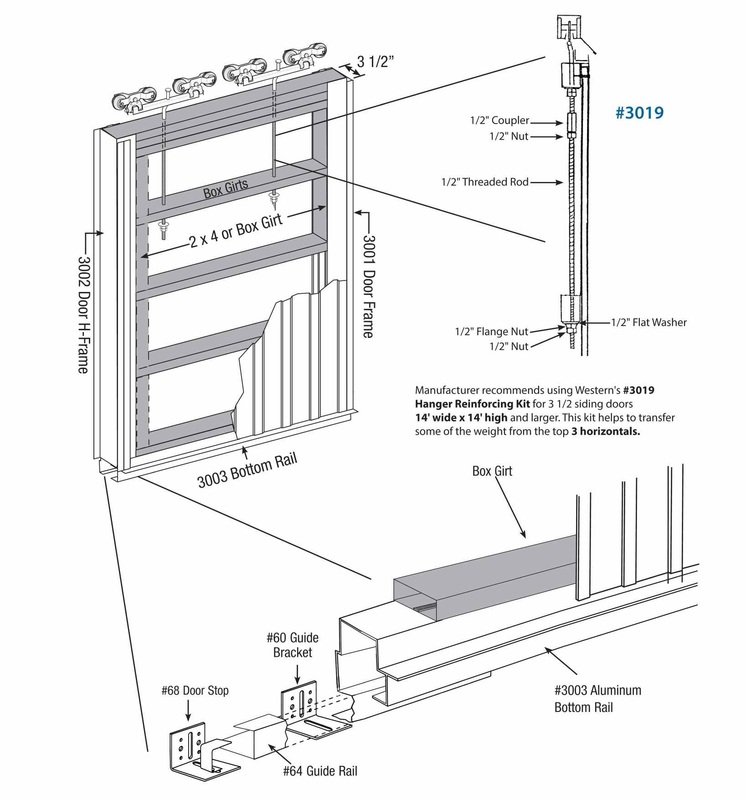

3-1/2" SLIDING DOOR FRAMES WITH STEEL BOX GIRTS
White Aluminum Door Frames (20 gauge) can be assembled with galvanized Steel Box Girts as horizontals. We recommend spacing the horizontals 24" on center. Steel inserts should be placed inside the vertical channel between each horizontal. Inserts should be permanently attached with screws, becoming part of the frame. This is suggested to help prevent damage to the doors in windy conditions.
White Aluminum Door Frames (20 gauge) can be assembled with galvanized Steel Box Girts as horizontals. We recommend spacing the horizontals 24" on center. Steel inserts should be placed inside the vertical channel between each horizontal. Inserts should be permanently attached with screws, becoming part of the frame. This is suggested to help prevent damage to the doors in windy conditions.
3 1/2" Thick Sliding Door Quick Frames
3001 3-1/2" White Aluminum Quick Frame Vertical
Is lumber fit (turned to the 3-1/2" side) for standard 2 x 4 wood or our steel box girts.
Packaged in pieces, bundled per order, available in 14', 16', 18' and 20' lengths.
Is lumber fit (turned to the 3-1/2" side) for standard 2 x 4 wood or our steel box girts.
Packaged in pieces, bundled per order, available in 14', 16', 18' and 20' lengths.
3001 3-1/2" White Aluminum Quick Frame Vertical
3002 3-1/2" White Aluminum H-Frame Vertical
Designed for use with bi-parting doors, provides concealed mating between units covering both door edges.
Packaged in pieces, bundled per order, available in 14', 16', 18' and 20' lengths.
Designed for use with bi-parting doors, provides concealed mating between units covering both door edges.
Packaged in pieces, bundled per order, available in 14', 16', 18' and 20' lengths.
3002 3-1/2" White Aluminum H-Frame Vertical
3003 3-1/2" White Aluminum Bottom Rail Horizontal
Attaches to bottom of door frame and accepts the #64 Rail Guide to firmly anchor and guide door along building during operation.
Packaged in pieces, bundled per order, available in 14', 16', 18' and 20' lengths.
Attaches to bottom of door frame and accepts the #64 Rail Guide to firmly anchor and guide door along building during operation.
Packaged in pieces, bundled per order, available in 14', 16', 18' and 20' lengths.
3003 3-1/2" White Aluminum Bottom Rail Horizontal
