Standard #2 Box Track Brackets

 All box track brackets shown below are designed to be used with the #2 standard box track only for doors up to 400lbs with proper bracket spacing.
For single track runs, space brackets 24" on center.  Double-track runs require brackets every 18" on center.

Wall Mount Single Box Track Brackets
The following single box track brackets are for single track run systems using our #2 standard box track.

9-2C Face Wall Mount Track Bracket
9-2C Face Wall Mount Track Bracket

9-2C Face of the Wall Mount Track Bracket
Self clamping single track bracket.
9-2J Face of the Wall Mount Splice Bracket
9-2J Face of the Wall Mount Splice Bracket
9-2J Face of the Wall Mount Splice Bracket
Use the 9-2J Splice bracket for joining two pieces of box track.
The 9-2J splice bracket is similar to the 9-2C wall bracket but two bolts tighten to the top of the track to hold sections of box rail together.
(Designed for our standard #2 Box Track only.)

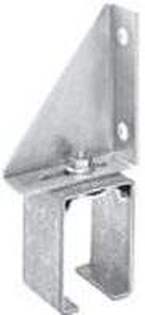

9-2S Adjustable Face Wall Mount Track Bracket
9-2S Adjustable Face Wall Mount Track Bracket

9-2S Adjustable Face of the Wall Mount Track Bracket
Adjustable face-mount bracket has two mounting holes for 3/8" lag screws or bolts. Especially appropriate for metal buildings.  Use with the 9-2SJ Splice Bracket when  connecting sections of track together.
(Designed for our standard #2 Box Track only.)
9-2SJ Adjustable Face Wall Mount Track Splice Bracket
9-2SJ Adjustable Face Wall Mount Track Splice Bracket

9-2SJ Adjustable Face of the Wall Mount Track Splice Bracket
Special clamping feature allows firm track splices for long, smooth runs, when joining two pieces of track. Joint bracket has two mounting holes for 3/8" lag screws or bolts especially appropriate for metal buildings. Use with the 9-2S Adjustable Face of the Wall Mount Track Brackets.
(Designed for our standard #2 Box Track only.)

Ceiling Mount Box Track Brackets
The following box track brackets are for single track run systems using our #2 standard box track.

4-2C Ceiling Mount Track Bracket
4-2C Ceiling Mount Track Bracket
4-2C Ceiling Mount Track Bracket
For overhead track mounting.
Tack weld these brackets when used as splices for extra strength.
(Designed for our standard #2 Box Track only.)

Wall Mount Double Box Track Brackets
The following double box track brackets are for double track run systems using our #2 standard box track.
These brackets allow you to set up bi-passing door.
Bi-pass systems allow doors to double stack and slide in front of one another.

We recommend using the 8-2S  Adjustable Face of the Wall Mount Double Track Brackets with the 8-2SJ Double Joint Brackets if splices are needed to connect sections of track for longer track runs.

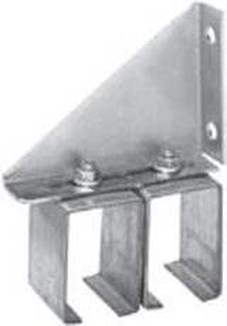

8-2S Adjustable Face Wall Mount Double Track Bracket
8-2S Adjustable Face Wall Mount Double Track Bracket

8-2S Adjustable Face of the Wall Mount Double Track Bracket
Adjustable face-mount bracket has two mounting holes for 3/8" lag screws or bolts. Especially appropriate for metal buildings. Use with the 8-2SJ Double Splice Bracket when  connecting sections of track together.
(Designed for our standard #2 Box Track only.)
8-2SJ Adjustable Face Wall Mount Double Joint Bracket
8-2SJ Adjustable Face Wall Mount Double Joint Bracket

8-2SJ Adjustable Face of the Wall Mount Double Joint Bracket
Adjustable face-mount bracket has two mounting holes for 3/8" lag screws or bolts. Especially appropriate for metal buildings.
Use with the 8-2S Adjustable Face/Wall Mount Double Track Brackets.
(Designed for our standard #2 Box Track only.)
8-2C Adjustable Face Wall Mount Double Track Bracket
8-2C Adjustable Face Wall Mount Double Track Bracket

8-2C Adjustable Face of the Wall Mount Double Track Bracket
Adjustable face-mount bracket has two mounting holes for 3/8" lag screws or bolts Especially appropriate for a wood header board.  Use with the 8-2J Splice Bracket when  connecting sections of track together.
(Designed for our standard #2 Box Track only.)
8-2J Adjustable Face Wall Mount Double Joint Bracket
8-2J Adjustable Face Wall Mount Double Joint Bracket

8-2J Adjustable Face of the Wall Mount Double Joint Bracket
Adjustable face-mount bracket has two mounting holes for 3/8" lag screws or bolts. Especially appropriate for wood header board.  Use with the 8-2C Adjustable Face/Wall Mount Double Track Brackets.
(Designed for our standard #2 Box Track only.)
8-2SFB Adjustable Face Wall Mount Double Track Flashing Bracket
8-2SFB Adjustable Face Wall Mount Double Track Flashing Bracket

8-2SFB Adjustable Face Wall Mount Double Track Flashing Bracket
Adjustable face-mount bracket has two mounting holes for 3/8" lag screws or bolts, with flashing bracket pre-attached at the factory to accept a double track cover. Especially appropriate for metal buildings.
(Designed for our standard #2 Box Track only.)
(Track cover not provided.)
